Запасные части центробежных насосов Mission 2500 Supreme

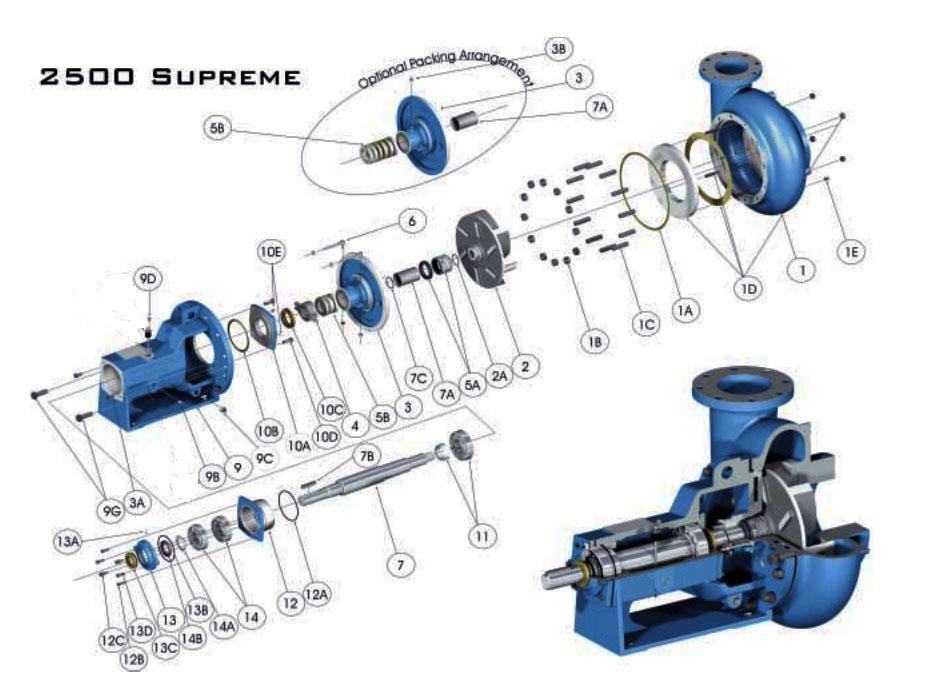

2500 Supreme parts
Mission, MCM centrifugal pump 2500 Supreme parts
ITEM
|
QTY
|
MISSION
PART No.
|
DESCRIPTION
|
MATERAIL
|
WEIGHT
kg
|
1*
|
1
|
See below
|
Casing
|
|
|
1A
|
1
|
10399-46-1
|
Gasket,casing
|
Vellumoid
|
0.01
|
1B
|
12
|
3932-61
|
Nut,casing
|
Stl
|
0.05
|
1C
|
12
|
H2507-3
|
Stud,casing
|
Stl
|
0.16
|
1D*
|
1
|
See below
|
Wear pad.includes
Stds,rucs＆gskt
|
|
|
1E
|
1
|
8505-2H
|
Plug,Casing Drain
|
Stl
|
0.03
|
2*
|
1
|
See below
|
Impeller
|
|
|
2A
|
1
|
H19110-72
|
Seal,impeller
|
Viton
|
0.002
|
3*#
|
1
|
H22223-01-30
|
Stuffing box,mech.seal
|
Hard Iron
|
20
|
3*&
|
1
|
H20614-01-30
|
Stuffing box,packed
|
Hard Iron
|
20
|
3A
|
2
|
H3861-117
|
Bolt,stuffing box
|
Stl
|
0.05
|
3B&
|
1
|
19368-1H
|
Grease fitting
|
Stl
|
0.01
|
4
|
2
|
H20622AH
|
Gland assy,packing
|
Stl 304
|
1
|
5A#
|
1
|
H22451-1A
|
Seal,mechanical
|
Tung/Tung
|
1
|
5B~
|
1
|
8264-24-0B
|
Packing, Shaft
|
|
0.7
|
6
|
2
|
20629
|
Bolt assy,gland
|
Stl 304
|
0.15
|
7
|
1
|
H20612-02-33
|
Shaft
|
42CrMo
|
17
|
7A#
|
1
|
H20613-21A
|
Sleeve,Shaft
|
|
1
|
7A&
|
1
|
H20613-21G-7A
|
Sleeve,Shaft(Ceramic)
|
|
1
|
7B
|
1
|
H4372-5-21
|
Key,Shaft
|
Stl
|
0.11
|
7C
|
1
|
23444-01-72
|
Seal,Shaft Sleeve
|
Viton
|
0.005
|
8
|
1
|
22210-1A
|
Deflector,Assembly
|
Composite
|
0.4
|
9
|
1
|
H17444
|
Frame,Grease Lubricated
|
Cast iron
|
80
|
9C
|
1
|
|
Plug,Frame Drain
|
Stl
|
0.033
|
9D
|
1
|
H8267-1
|
Breather
|
Stl
|
|
9G
|
2
|
H2538-1
|
Bolt,Casing Jack
|
Stl
|
|
10A
|
1
|
H17950
|
Cover,Inboard Bearing
|
Iron
|
2.6
|
10B
|
1
|
H20625
|
Gasket, Inboard Bearing Cover
|
Vegetable fiber
|
0.01
|
10C
|
1
|
H2564-4
|
Labyrinth Seal,IB Brg Cvr
|
Buna-n
|
0.06
|
10D
|
2
|
H3861-1
|
Bolt,I.B.Brg.Cover
|
Stl
|
0.03
|
10E
|
1
|
|
Grease Fitting
|
Stl
|
|
11
|
1
|
N/A
|
Bearing,Inboard
|
Vendor
|
2.1
|
12
|
1
|
H20624-01-01
|
Houding,O.B.Bearing
|
Iron
|
6
|
12A
|
1
|
H7496-253
|
Seal,O.B.Brg Housing
|
Buna-n
|
0.01
|
12B
|
4
|
H3861-138
|
Bolts,O.B.Brg.Housing
|
Stl
|
0.05
|
12C
|
2
|
H3932-62
|
Nut,O.B.Brg.Housing
|
Stl
|
0.016
|
13
|
1
|
20617A
|
Cover,O.B.Bearing
|
Iron
|
1.8
|
13A
|
1
|
|
Grease Zerk,O.B.Brg.Cvr.
|
Stl
|
0.01
|
13B
|
1
|
H7496-26
|
O-ring,O.B.Bearing Cover
|
Buna-n
|
0.001
|
13C
|
1
|
H2564-3
|
Labyrinth Seal,O.B. Brg Cvr.
|
Buna-n
|
0.04
|
13D
|
2
|
H3861-139
|
Bolt,O.B.Brg.Cover
|
Stl
|
0.025
|
14
|
2
|
H20616-1S
|
Bearing,O.B.(2 Req’d)
|
Vendor
|
1.5
|
14A
|
1
|
H6124-4
|
Lockwasher,O.B.Bearing
|
Stl
|
0.01
|
14B
|
1
|
H6123-4
|
Locknut,O.B.Bearing
|
Stl
|
0.22
|
Casings-includes studs,nuts & gasket
|
1*
|
1
|
H19203-01-30A
|
|
Hard Iron
|
55
|
1*
|
1
|
H19205-01-30A
|
Casing,4×3×13,w/ wear pad
|
Hard Iron
|
55
|
1*
|
1
|
H19222-01-30A
|
Casing,5×4×14 w/ wear pad
|
Hard Iron
|
85
|
1*
|
1
|
H19122-01-30A
|
Casing,6×5×11 w/ wear pad
|
Hard Iron
|
88
|
1*
|
1
|
H19123-01-30A
|
Casing, 6×5×14 w/ wear pad
|
Hard Iron
|
90
|
1*
|
1
|
H19763-01-30A
|
Casing, 8×6×11 w/ wear pad
|
Hard Iron
|
95
|
1*
|
1
|
H19117-01-30A
|
Casing,8×6×14 w/ wear pad
|
Hard Iron
|
125
|
1*
|
1
|
H20937-01-30A
|
Casing,10×8×14 w/ wear pad
|
Hard Iron
|
150
|
Impellers and Casing Wear Pads
|
2*
|
1
|
H19204-XX-30
|
Impeller,3×2×13 Open
|
Hard Iron
|
9
|
2*
|
1
|
H19206-XX-30
|
Impeller,4×3×13 Open
|
Hard Iron
|
12.5
|
2*
|
1
|
H2523-XX-30
|
Impeller,5×4×14 Semi Open
|
Hard Iron
|
18
|
2*
|
1
|
H2523-XX-30
|
Impeller,6×5×11 Semi Open
|
Hard Iron
|
17
|
2*
|
1
|
H2523-XX-30
|
Impeller, 6×5×14 Semi Open
|
Hard Iron
|
22
|
2*
|
1
|
H2524-XX-30
|
Impeller, 8×6×11 Semi Open
|
Hard Iron
|
23
|
2*
|
1
|
H2524-XX-30
|
Impeller,8×6×14 Semi Open
|
Hard Iron
|
25
|
2*
|
1
|
H2526-XX-30
|
Impeller,10×8×14 Semi Open
|
Hard Iron
|
26
|
1E
|
1
|
H2501-01-30A
|
Wear Pad,4×3×13 Casing
|
Hard Iron
|
9
|
1E
|
1
|
H2502-01-30A
|
Wear Pad,5×4×14 Casing
|
Hard Iron
|
9.5
|
1E
|
1
|
H2503-01-30A
|
Wear Pad,6×5×11 Casing
|
Hard Iron
|
8.5
|
1E
|
1
|
H2504-01-30A
|
Wear Pad, 6×5×14 Casing
|
Hard Iron
|
10
|
1E
|
1
|
H2505-01-30A
|
Wear Pad, 8×6×11 Casing
|
Hard Iron
|
9.5
|
1E
|
1
|
H2506-01-30A
|
Wear Pad,8×6×14 Casing
|
Hard Iron
|
11
|
1E
|
1
|
H2507-01-30A
|
Wear Pad,10×8×14 Casing
|
Hard Iron
|
12
|
Мы поставляем весь центробежный насос в сборе и запасные части: корпус насоса, вал насоса, втулки вала, механическое уплотнение, подшипники и т. Д. OEM-продукты являются приемлемыми. Наши насосы полностью взаимозаменяемы с MCM, Mission, Harrisburg, Halco и Demco.
We supply whole centrifugal pump assembly,and replacement parts: Pump Casing, Pump Shaft, Shaft Sleeves, Mechanical Seal, Bearings.etc. OEM products are acceptable. Our pumps are totally interchangeable with MCM, Mission, Harrisburg, Halco and Demco
