For Varco Top drive TDS9, TDS11SA, S pipe replacement spare parts
All spare parts are totally interchangeable with NOV OEM parts. You are welcome to contact us for inquiries.
amber@linhaievergrow.com
candyy.evergrow@gmail.com
2022年9月23日星期五
M614002641 ASSY PLUG 3” FIG 1002-For NOV Varco Top drive TDS9, TDS11SA, S pipe replacement spare parts
2022年9月21日星期三
TDS-11 top drive spare parts, OEM#30158690 Stab, liner
TDS-11 top drive spare parts, OEM#30158690 Stab, liner
If you are in the oil field if you have any projects for TDS repair, overhaul, and maintenance, welcome to contact us for spare parts inquiry.
contact: amber@linhaievergrow.com
2022年9月19日星期一
Guide Funnel Stabilizer; p/n 76442 VARCO TDS 10SH Spare parts
Guide Funnel Stabilizer; p/n 76442 VARCO TDS 10SH Spare parts
We mainly do spare parts for NOV Varco Top drive TDS9, TDS11SH, TDS11SA, TDS10SH, and Canrig top drive spare parts.
You are welcome to contact us for further details.
Contact: amber@linhaievergrow.com
2022年8月17日星期三
EVERGROW EG250 Heavy-duty Centrifugal Pump
Innovative Structure Design
Equivalent to NOV Mission 2500 Supreme line pump design, and the full line of spare parts are 100% identical in all dimensions to Mission 2500 Supreme, Halco, SPD Baker, MCM, Double Life, and most popular brand pumps, completely interchangeable with other pumps currently on the market.
One-piece, Thicker, Stronger and Concentric Casing
All EVERGROW EG250 pump casings are designed thicker than the conventional domestic pump casings, and the concentric casing eliminates vibration, turbulence, and cavitation which is caused by cut water in the conventional volute pumps, and it also can reduce the high bearing load and shaft deflection present in other designs at near shutoff flows.
Casing jack bolts allow the casing to be mechanically removed eliminating the need for pry bars or striking the casing during maintenance and eliminating damage to the casing and pedestal during disassembly.
Wear Pads
The casing provides a replaceable casing wear pad on 4x3x13 -10x8x14 models, to extend the life of the casing and allow the casing to be repaired at a lower cost by merely replacing the wear pads.
Wider, Semi Open Impeller
Compared with an open vane design, a semi-open impeller design could reduce the most of solids that enter the stuffing box, which could extend the life of the mechanical seal or packing and stuffing box. Available on pump sizes of 5x4x14 to 10x8x14.
2 1/2" Larger Heavy-duty Alloy Steel Shaft
Much larger pump shaft for heavy-duty performance, min. deflection and increased life of packing and mechanical seal; and the replaceable hook type shaft sleeve is easily replaced in the field without removing the shaft, which prevents the shaft wear and prolongs the shaft working life. A ceramic coated shaft sleeve is for option.
Long Life Cost-Effective Mechanical Seal
The mechanical seal allows for near zero leakage. Single tungsten carbide vs. tungsten carbide mechanical seal is the factory standard, which is highly abrasive resistant in PH value of 7-14. And silicon carbide vs. silicon carbide mechanical seal is recommended for a lower PH level. Both types are lubricated by the transferring fluid and required the pump to remain primed during operation. EVERGROW also offers a more economical option, packing rings to address the leakage.
High-quality, Advanced Front and Rear Bearings
The outboard bearing is a duplex set of angular contact bearings with high thrust load capabilities and zero end play, and the front or inboard bearing is a single row roller bearing with high radial load capabilities to replace the previous double row bearing. Advanced front and rear bearing designs reduce both radial and thrust loads. Grease lubrication is the factory standard. Oil lubrication is recommended for pump speed over 2400rpm, upon request.
Easy Removal Stuffing Box
Dual stuffing box bolts are positioned 180 degrees apart to hold the stuffing box in position during casing removal. To remove just one bolt to remove the stuffing box to access the casing and stuffing box chamber for the convenient replacement of shaft sleeve or mechanical seal installation. Grease lubrication or to flush the internal flushing 5 standard rings of packing w/ a lantern ring can be operated from the tapped opening on the stuffing box.
Solid Frame Pedestal
The solid frame base provides strong support to the heavy-duty pump performance and is replaceable with other popular brand pumps of the same pedestal size.
Various Fluid End Material Selections
The hard iron fluid end is the factory standard, but we also provide various fluid end materials of stainless steel(304,316), aluminum bronze, high chrome alloy iron, and hardened hard iron(carbide coating) for a variety of applications. High chrome alloy iron material is specifically for high abrasion resistance required, which provides greater wear resistance and higher strength in the casing, stuffing box, and impeller, hardness to be HB600, even 3 times wear resistance than that of hard iron; and carbide coating is about 2 times harder than that of hard iron but at an economic cost.
Multiple Applications
EVERGROW EG250 heavy-duty centrifugal pump can be used in a multitude of applications from handling abrasive cement, and drilling fluid in the oil & gas industry, also disposal of waste, and Mine de-watering, seawater, etc.
Same Power End
Model of 3x2x13 to 10x8x14 with the same power ends to reduce greatly spares inventory.
Centrifugal Pump Skid Packages
For the convenience of our valued customers, EVERGROW also offers its pumps mounted on skid packages, coupled with electric motors, diesel engines, or hydraulic motors. Unitization services are offered as flexible coupling connect, belt driven, or close coupled and can be designed for mounting in a horizontal or vertical position, and wired with starters if so desired. The equipped motor is IP65 explosion-proof motor proved by CNEX or IEC. Sizes from 3x2x13 to 10x8x14.
Painting and Packaging
All EVERGROW standard pumps are painted with 3 layers of quality paint, a primer: Zinc, Second Coat: Epoxy base, a Top coat: High build polyurethane, and also accept customized painting colors at an additional charge. All parts are properly packaged to protect during shipping, and a clear mark or label will be indicated on the packaging for easy identification.
Performance Testing
All EVERGROW pumps before being released from the factory are performed in-house hydrostatically test at no charge, we also accept third-party testing if our customer required additional charges.
2022年6月28日星期二
Gland, Assembly, 250 Centrifugal Pump, P25PG-MISSION Equivalent/MCM Equivalent #20622A
Packing Gland Assembly 20622A is used for Magnum 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14 Pumps.
It is also used for MCM 250 series centrifugal pumps
MCM part number: P25G
MISSION Part No.: 20622A
Stock No.: 64110338
The Gland Assembly, Packing is mainly used to compress the packing to ensure the tightness between the packing and the shaft sleeve. It will be contacted with the packing shaft and deflector assembly to act as a seal.
For more details and inquiries, contact amber@linhaievergrow.com.
2022年5月24日星期二
NOV top drive TDS-10SH spare parts- o-ring 30123286/30123288 NOV top drive TDS-10SH
o-ring 30123286 NOV top drive TDS-10SH
o-ring 30123288 NOV top drive TDS-10SH
Evergrow is an ISO Certified supplier for spare parts of NOV Varco Top drive, welcome to contact amber@linhaievergrow.com candyy.evergrow@gmail.com for more details.
NOV top drive TDS-10SH spare parts- hydraulic accumulator 110564-1SEP 110563-1
filter element 30111013-1 NOV
filter element 30111013-1 NOV
hydraulic accumulator 110564-1SEP 110563-1 NOVtop drive TDS-10SH
joint 30173521 NOV top drive TDS-10SH
candyy.evergrow@gmail.com for details.
Bolt 50108-24-C O-Ring 10.000 Rod 77039 aftermarket spare parts for NOV Top drive
NOV Varco TDS11SA & TDS9S Spare parts.
Aftermarket spare parts for NOV Top drive repair&maintance
Bolt 50108-24-C
O-Ring 10.000 Rod 77039
.jpg)
Pin 112893-1 for Varco TDS11SA Top drive NOV

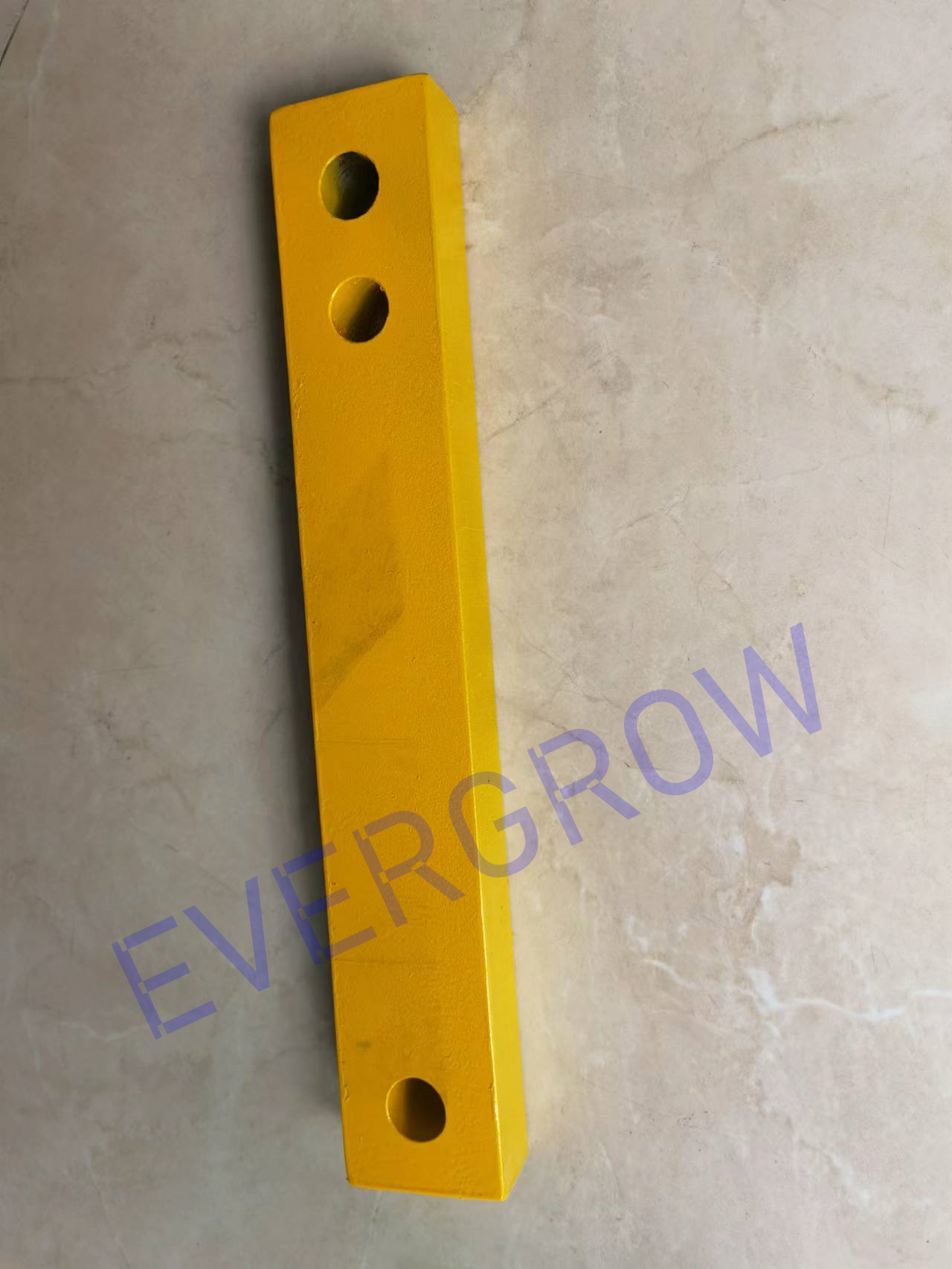

Plate 119973-BSC For NOV TDS9&TDS11SA
Linhai Evergrow is an ISO Certified supplier of spare parts for NOV Top drive, mainly service model is TDS9&TDS11SA.
Quality and delivery time of our spare parts can be assured.
Welcome to contact us for details.
Linhai Evergrow Petro Equipment Co., Ltd.
Office Address: #11 Tangyan South Road, Xi'an, China
Mobile/Whatsapp:0086-18966825993
Email: amber@linhaievergrow.com candyy.evergrow@gmail.com
Website: https://www.tdstopdriveparts.com
ISO Certified R&D, Sales of Oil drilling rig Top drive Spare parts/Centrifugal pumps and Spare parts/Shale Shaker screens
2022年5月19日星期四
H20617-01-01 Cover, Front Bearing-MISSION Centrifugal pump spare parts-Mission Equivalent centrifugal pumps parts
H20617-01-01 Cover, Front Bearing
MISSION Centrifugal pump spare parts-Mission Equivalent centrifugal pumps parts
Linhai Evergrow Petro Equipment Co., Ltd.
Office Address: #11 Tangyan South Road, Xi'an, China
Mobile/Whatsapp:0086-18966825993
Email: amber@linhaievergrow.com candyy.evergrow@gmail.com
Website: https://www.tdstopdriveparts.com
ISO Certified R&D, Sales of Oil drilling rig Top drive Spare parts/Centrifugal pumps and Spare parts/Shale Shaker screens
2022年5月11日星期三
Mission Magnum XP Centrifugal Pump 14x12x22, Blender Pump/Slurry pump - MCM/MISSION Equivalent centrifugal pump and spare parts
Mission 14x12-22 XP Pumps, 14x12x22 XP Blender Pumps
Welcome to contact for more details, complete pump and spare parts are all available, for some items available in stock, the delivery date is only 1 week.
Contact us for a surprising price for the new centrifugal pumps and new spare parts.
Linhai Evergrow Petro Equipment Co., Ltd.
Office Address: #11 Tangyan South Road, Xi'an, China
Mobile:0086-18966825993
Tel: 0086-29-89284922
Email: amber@linhaievergrow.com candyy.evergrow@gmail.com
Website: www.linhaievergrow.com
2022年3月29日星期二
Screw cap screw, 50108-Varco Top drive spare parts-For NOV TDS9&TDS11SA-After market spare parts
Screw cap screw, 50108
Welcome to find us by the below methods, contact us for inquiries!
Linhai Evergrow Petro Equipment Co., Ltd.
Office Address: #11 Tangyan South Road, Xi'an, China
Mobile/Whatsapp:0086-18966825993
Email: amber@linhaievergrow.com
Website: www.tdstopdriveparts.com
ISO Certified R&D, Sales of Oil drilling rig Top drive Spare parts/Centrifugal pumps and Spare parts/Shale Shaker screens
BOGEY 124537-Spare parts for Varco Top drive-NOV TDS9&TDS11SA-After market replacement spare parts
BOGEY 124537
Welcome to find us by the below methods, contact us for inquiries!
Linhai Evergrow Petro Equipment Co., Ltd.
Office Address: #11 Tangyan South Road, Xi'an, China
Mobile/Whatsapp:0086-18966825993
Email: amber@linhaievergrow.com
Website: www.tdstopdriveparts.com
ISO Certified R&D, Sales of Oil drilling rig Top drive Spare parts/Centrifugal pumps and Spare parts/Shale Shaker screens
NOV Varco Top drive Jaw assy Wrench-80492 For Varco TDS9&TDS11SA
Jaw assy Wrench-80492 For Varco TDS9&TDS11SA
30124925 - Jaw, Tool Joint, Pipe Handling
125051-2 JAW ASSY
Welcome to find us by the below methods, contact us for inquiries!
Linhai Evergrow Petro Equipment Co., Ltd.
Office Address: #11 Tangyan South Road, Xi'an, China
Mobile/Whatsapp:0086-18966825993
Email: amber@linhaievergrow.com
Website: www.tdstopdriveparts.com
ISO Certified R&D, Sales of Oil drilling rig Top drive Spare parts/Centrifugal pumps and Spare parts/Shale Shaker screens
2022年3月10日星期四
MCM 250 Series Centrifugal pump Diagram MCM/Mission/Halco/Harrisburg/Derrick equivalent
MCM 250 Series Centrifugal pump Diagram
MCM 250 Series centrifugal pump could be interchanged with MISSION, HALCO, HARRISBURG and Derrick centrifugal pumps. Part numbers are listed as below:
Contact amber@linhaievergrow.com for pump and parts inquiry.
Item No. Description Qty Req MCM Mission Halco Harrisburg Derrick
1 250 Pedestal 1 P25PED 20618-12-1 H20618-12-1 1-250-PED G0006001
2 250 Shaft 1 P25SHFT 20612-02-33 H20612-02-33 7-250-416SS G0006002
3 250 Outboard Bearing Housing 1 P25OBBH 20624-01-01 H20624-01-01 4C-250-BH G0006003
4 250 Packing Gland 1 P25PG 20622A H20622A 9-250-GPA G0006004
5 250 Inboard Bearing 1 P25IBBRG 20615-1 H20615-1 4B-250-BI G0006005
6 250 Slinger Ring Water 1 P25SRW 22210-1A H22210-1A 23-250-SRW-U
7 250 Inboard Bearing Cover 1 P25IBBC 20626A H20626A 2B-250-BC G0006007
8 250 Outboard Bearing 2 P25OBBRG 20616-1 H20616-1 4A-250-BO G0006008
9 250 Outboard Bearing Cover 1 P25OBBC 20617A H20617A 2A-250-BC G0006009
10 250 Graphite Packing 1 P25PMSG 8264-24-OBA H8264-24-OBA 8A-250-PMSG G0006010
250 King Packing 1 P25PMSK 8474-24-1A H8474-24-1A 8C-250-PMSK G0006011
250 Teflon Packing 1 P25PMST 8264-24-7A H8264-24-7A 8D-250-PMST G0006012
250 Mechanical Seal 1 P25MS/TT 22451 H22451 34A-250-MSI G0006013
11 250 Gland Bolt Assembly 2 P25GABA 3701A H3701A 10-250-GABA
12 250 Shaft Sleeve, Ceramic 1 P25SHSLVC 20613-21G-7A H20613-21G-7A 7A-250-SSC G0006015
13 250 Stuffing Box F/Packing 1 P25SB/PK 20614-01-30 H20614-01-30 11-250-SBPS G0006016
250 Stuffing Box F/Mech. Seal 1 P25SB/MS 22223-01-30A H22223-01-30A 11C-250-SBMSS G0006017
14 250-2x3x23 Impeller 1 P25D233MRXXX 19204-XX-30 H19204-XX-30 1225231XXX
250-3x4x13 Impeller 1 P25D343MRXXX 19206-XX-30 H19206-XX-30 1225341XXX G0006026
250-4x5x14 Impeller 1 P25D454MRXXX 19224-XX-30 H19224-XX-30 1225451XXX
250-5x6x11 Impeller 1 P25D561MRXXX 19121-XX-30 H19121-XX-30 1225561XXX G0006021
250-5x6x14 Impeller 1 P25D564MRXXX 19121-XX-30 H19121-XX-30 1225564XXX G0006022
250-6x8x11 Impeller 1 P25D681MRXXX 19116-XX-30 H19116-XX-30 1225681XXX
250-6x8x14 Impeller 1 P25D684MRXXX 19116-XX-30 H19121-XX-30 1225681XXX G0006023
15 250-2x3x13 Housing Assembly 1 P25D233H 19203-01-30A H19203-01-30A 142523HAS
250-3x4x13 Housing Assembly 1 P25D343H 19205-01-30A H19205-01-30A 142534HAS G0006019
250-4x5x14 Housing Assembly 1 P25D454H 19222-01-30A H19222-01-30A N/A
250-5x6x11 Housing Assembly 1 P25D561H 19122-01-30A H19122-01-30A 1425561HAS-11 G0006028
250-5x6x14 Housing Assembly 1 P25D564H 19123-01-30A H19123-01-30A 1425561HAS-14 G0006029
250-6x8x11 Housing Assembly 1 P25D681H 19763-01-30A H19763-01-30A N/A
250-6x8x14 Housing Assembly 1 P25D684H 19117-01-30A H19117-01-30A 142568HAS G0006031
15b 250 Replaceable Wear Pad 1 P25DCWP
Casing wear plate 6х5х14 1 P25CWP564 19123-01-30A H19123-01-30A G0006050
Casing wear plate 8х6х14 1 P25CWP684 19117-01-30A H19117-01-30A G0006052
16 250 Housing Stud W/Nut 12 P25HSN 3862-76/3932-61 H3862-76/3932-61 15-250-HSN
17A 250 Fluid End Gasket Kit P25FEGK 10399-46-1A H10399-46-1A 31-250-FEGK
17 250 Housing Gasket 1 P25HG 10399-46-1 H10399-46-1 13C-250-HGA G0006034
18 250 Impeller Seal-O ring 1 P25IMS 19110-72 H19110-72 12B250-ISOR
19 250 Shaft Sleeve Seal-Oring 1 P25SSS 7496-236 H7496-236 7B-250-SSOR
20A 250 Oil Seal kit P250SK 20619A H20619A 33-250-GSK
20 250 Inboard Bearing Oil Seal 1 P25IBBOS 20619-01 H20619-01 5B-250-OGSI
21 250 Inboard Exclusion Seal 1 P25IBBES 20620-01 H20620-01 5C-250-SEXI
22 250 Outboard Bearing Oil Seal 1 P25OBBOS 20619-02 H20619-02 5A-250-OGSO
23A 250 Power End Gasket Kit P25PEGK 20625A H20625A 32-250-PEGK
23 250 Inboard Bearing Cover Gasket 1 P25IBBCG 20625 H20625 3A-250-BCG
24 250 Outbd Bearing Hsg.Seal-Oring 1 P250BBHS 7496-253 H7496-253 4D-250-BHOR
25 250 Outbd Brg. Cover Seal-Oring 1 P250BBCS 7496-26 H7496-26 3B-250-BCOR
26 250 Bearing Lock Nut Kit 1 P25BLNK 6123-4A H6123-4A 4E-250-BBLNA
